The cold weather and dry climate present various conditions that are unfavorable for the normal lifespan of domestic excavator parts. We cannot change nature, we can only solve this problem through more scientific and effective methods. Domestic excavator parts manufacturers have summarized five points for us to refer to:

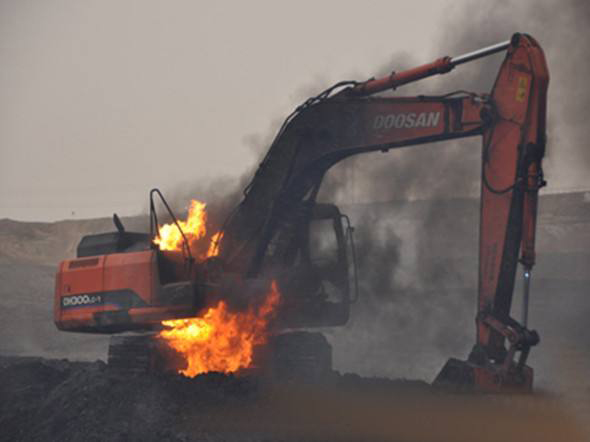

I. Domestic excavator accessory manufacturers remind us to pay attention to fire prevention
1. During transportation, walking, and excavation, the excavator should avoid touching electrical wires, otherwise it may cause serious injury accidents.
2. The electrical appliances and circuits in the accessories of domestic excavators should be checked frequently. If any damage, damage, or aging is found, it is necessary to replace them in a timely manner to prevent short circuits in the electrical circuits and prevent fires.
3. Keep the wire joints clean and firmly fixed. Check whether the wires are loose or damaged every day, tighten loose joints or wire clamps, and rest or fix damaged wires.
3. Flammable materials must not be placed inside the excavator to prevent fires.
4. When refueling, it is necessary to stop the engine. Refueling should be done in a place far away from the fire source and should not leave the machine.
5. When refueling, do not allow fuel to overflow onto overheated surfaces or domestic excavator parts of the electrical system.
6. After refueling, wipe off any spilled fuel or oil and tighten the fuel and oil tank caps.
7. Timely remove leaves, wood chips, paper scraps, and other flammable materials that have accumulated or stuck inside the engine, exhaust pipes, mufflers, and engine compartment.
8. Oil soaked cloths should not be placed inside the machine to prevent spontaneous ignition and burning.
9. Users should equip fire extinguishers inside the machine and keep them easily accessible.
10. When welding the machine, it is forbidden to do so without isolating the hydraulic oil and fuel pipelines.
11. To prevent fires caused by hydraulic pipelines, check whether all hose and pipe clamps, shields, and buffers are firmly fixed in place. If they are loose, it will cause a sensation during operation and friction with other domestic excavator accessories. Causing damage to the hose, high-pressure oil spraying out, resulting in fire damage or serious injury.
12. The battery should be kept away from sources of fire to prevent high temperatures, otherwise it may cause explosions.
13. For excavators with a sealed cab, the sealing of the middle partition should be checked to prevent engine exhaust from entering the cab and causing driver poisoning.
14. It is prohibited to work in areas with poor ventilation to prevent drivers from suffocating.
When a fire breaks out, do not use water to extinguish it. Instead, use a powder fire extinguisher or sand to extinguish the fire. You can also use a cover or tarpaulin to extinguish the fire.
II. Domestic excavator parts factory teaches you how to choose diesel
A bottle of engine fluid should be brought with the excavation machine during winter construction, and the fuel can also be selected according to the temperature. Nowadays, the vast majority of excavation machines use diesel engines, and the editor has collected some materials for our reference.
The basis for dividing diesel grades is the freezing point of diesel. Currently, light diesel used in China is divided into 7 grades based on the freezing point:
10 # Diesel: Suitable for high-speed diesel engines with preheating equipment
5 # Diesel: Suitable for use at temperatures above 8 ℃
0 # Diesel: Suitable for use at temperatures between 8 ℃ and 4 ℃
-10 # Diesel: Suitable for use at temperatures between 4 ℃ and -5 ℃
-20 # Diesel: Suitable for use at temperatures ranging from -5 ℃ to -14 ℃
-35 # Diesel: Suitable for use at temperatures between -14 ℃ and -29 ℃
-50 # Diesel: Suitable for use at temperatures ranging from -29 ℃ to -44 ℃ or below
Advocate us to pay more attention to weather forecasts and choose different grades of fuel according to the appropriate temperature.
III. The solution to the difficulty of starting in cold weather
There are many reasons why the excavator cannot start in winter. To eliminate the cause of machine problems, there are several common problems with domestic excavator accessories:
1. The battery is running low. 2. The speed is not high. 3. The cooling water is frozen
To address these issues, let's start with the principle of the battery in domestic excavator accessories. Simply put, the sulfate ions and water molecules in the battery generate electrical energy through collision. In winter, the temperature is low, and the gap between sulfate ions and water molecules is large, resulting in a slower movement speed, which is manifested as a lack of battery power. So the maintenance of batteries in winter is also extremely important. Sometimes it can be found that even if the main power switch is turned off before leaving work, the battery still lacks power the next day. The safest way is to remove the battery after work and store it in a cool, dry place. Xiao Hei often encountered such problems before, so he would remove the battery and place it in the cab before leaving work every day. However, we all know that this is not safe, so we do not advocate doing so.
If the speed is not high, it is mainly due to insufficient preheating
Domestic excavator parts manufacturers have found that there are generally two methods of preheating: air preheating and incineration chamber electric plug heating preheating. Ordinary engines use air preheating, but we can find that previous models of excavators did not have preheating function and often needed to spray engine fluid to help preheat. However, many new machines now have this function, usually at the engine switch in the cab. Before starting the excavator, it is generally preheated for 5-10 minutes before starting the excavator.
Electric fuel injection diesel engine preheater for domestic excavator accessories
Freezing the cooling water is a better solution, and draining the water before freezing can prevent this problem. In winter, we are used to adding antifreeze to the excavator, but we should be careful not to mix it with water, otherwise the effect will be greatly reduced. In some places in the south, the temperature is not low and there are only a few days of rain and snow. Therefore, before the rain and snow come, it is only necessary to discharge the cooling water. Domestic excavator parts manufacturers remind us to work at idle speed before turning off the engine. When the temperature of the cooling water drops below 60 ℃ and the water is not hot to the hands, turn off the engine and drain the water. Use a bucket to fill the discharged water and place it in the cab. It can also be added the next day. Of course, adding appropriate hot water is also a method if conditions permit, but do not pour hot water on other parts.
IV. Domestic excavator accessory manufacturers prohibit the use of these incorrect methods
1. Use an open flame to assist in starting the engine
Some people take off the air filter of domestic excavator accessories, dip cotton yarn in diesel fuel, and make it into a spark ignition material to be placed in the intake pipe for combustion assistance, and even use methods such as "roasting the fuel tank with fire" and "smoking the engine". This may seem like it, but in reality, it can damage the engine at a light level or burn the machine at a heavy level.
2. Release water too early or do not release cooling water
If not handled properly at this time, there may be a phenomenon of engine body expansion or sudden contraction leading to cracks.
3. Choose fuel randomly
The low temperature in winter reduces the fluidity and viscosity of diesel, making it difficult to spray and resulting in poor atomization. Therefore, diesel models should be selected according to 7-10 ℃ lower than the local seasonal minimum temperature at that time.
5、 Suggestions of domestic excavator parts editor
1. Before use, the excavator should work at low idle for at least 5 minutes to allow the engine to warm up Engage and detach the joystick controller To accelerate the preheating of hydraulic components When preheating the excavator at idle speed, please adhere to the following principles:
A. When the temperature is above 0 ℃, preheat the engine for about 15 minutes
B. When the temperature is below 0 ℃, preheat the engine for about 30 minutes
C. When the temperature is below -18 ℃ or the hydraulic function is delayed, a longer preheating time may be required
To preheat the hydraulic oil, turn the engine speed dial to medium engine speed Keep the engine running for approximately 5 minutes and continuously move the control lever.
3. Turn the engine speed dial to the maximum engine speed and repeat step 2.
4. Cycle all control levers to allow hot hydraulic oil to flow into each hydraulic cylinder and hydraulic circuit.
5. Always pay attention to the watches and indicator lights of domestic excavator accessories during operation Attention: Before the engine oil pressure indicator light goes out, the engine should continue to operate at low speed If the indicator light does not turn off within 10 seconds, the engine should be stopped and the cause should be investigated before restarting It cannot be ruled out that the problem may cause engine damage.
